Adjust xyz
Not UAV
Adjust xyz command applies a varying XYZ correction to the block binary files. The correction model is defined by a text file containing rows with five fields: X Y dX dY dZ where X and Y define a fixed coordinate location and dX dY dZ define the change of XYZ coordinates at this fixed XY location.
The command performs the same action on block binary files as the Transform loaded points command with setting Transform = Dxyz on loaded points.
To adjust block binary file coordinates to a varying XYZ correction model:
1. (Optional) Select block definitions in the Project window to be adjusted.
2. Choose Adjust xyz command from the Tools pulldown menu.

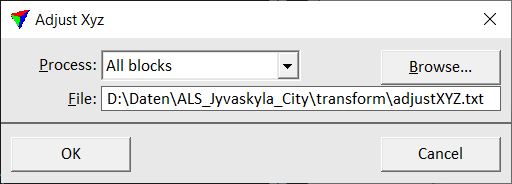

This opens the Adjust Xyz dialog:
3. Define settings and click OK.
This starts the adjustment process. The process effects the block binary files directly on the hard disc. It might be advisable to create a backup copy of the block binary files before starting the process.
SETTING |
EFFECT |
---|---|
Process |
Blocks to adjust: All blocks or Selected blocks. |
File |
Text file that stores the correction values. |
