Inspect point
Inspect Point tool displays and labels single point attribute information. In addition, it can label Pulse vector, a short line pointing the measurement position of the point. Labeling pulse vector requires trajectories.
This tool is useful for examining the point cloud and making notes of the attributes.
To inspect point attributes:
1. Select the Inspect Point tool.

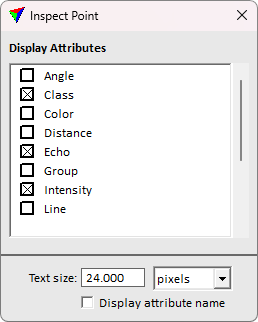

The Inspect Point dialog opens:
2. Select the attributes to check and define the labeling settings.
3. Hover the point cloud with mouse cursor. The application highlights the active point and shows the attribute label next to mouse cursor.
4. Place a data click to lock the point selection.
5. Place a data click to write the attribute label to the CAD view.
You may continue with step 3 to place more labels.
SETTING |
EFFECT |
|---|---|
Display attributes |
The attributes to label. |
Text size |
The font size of the text labels. The font size can be defined in pixel units to create label relative to the screen, or measurement units for labels relative to coordinate system. |
Display attribute name |
If on, the label includes the attribute names for better readability. |
