Remove Points From Displayset
Remove Points From Displayset tool removes points from a displayset. This requires that there is already a displayset created with the Add Points To Displayset tool. You can remove all points of all or selected classes from a displayset, or a specific group, or points inside a fence.
To remove points from a displayset:
1. Select Remove Points From Displayset tool.

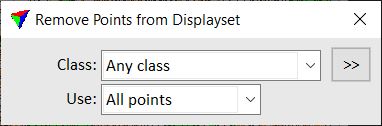

This opens the Remove Points from Displayset dialog:
3. Define settings.
4. If Use is set to All points, place a data click inside a view.
If Use is set to Group, place a data click on the group to add to the displayset.
If Use is set to Fence, draw a fence by placing data clicks inside a few. Confirm the fence content with an additional data click.
This removes the points from the displayset. If all points are removed from the displayset, the displayset is cleared. The point display changes to all points, even if Points is set to Displayset only in the Display mode dialog.
SETTING |
EFFECT |
|---|---|
Class |
Point class(es) removed from the displayset. |
|
Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the Class field. |
Use |
Determines which points are removed from the displayset: •All points - all points in the given source class(es). •Group - points of one group in the given source class(es). This requires that groups are assigned to the points. •Fence - points inside a fence in the given source class(es). This requires that a fence is drawn in the CAD file before starting the tool |
