Add Points To Displayset
Add Points To Displayset tool adds points to a displayset. If there is not yet a displayset, the tool creates one. You can add all points of all or selected classes to a displayset, or a specific group, or points inside a fence.
To add points to a displayset:
1. Select Add Points To Displayset tool.

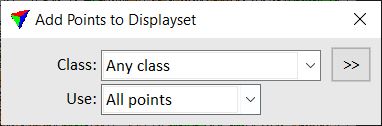

This opens the Add Points to Displayset dialog:
3. Define settings.
4. If Use is set to All points, place a data click inside a view.
If Use is set to Group, place a data click on the group to add to the displayset.
If Use is set to Fence, draw a fence by placing data clicks inside a view. The last data click must close the fence. Confirm the fence content with an additional data click.
This adds the points to the displayset. If Points is set to Displayset only for a view in the Display mode dialog, only points of the displayset are visible in this view.
SETTING |
EFFECT |
|---|---|
Class |
Point class(es) added to the displayset. |
|
Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the Class field. |
Use |
Determines which points are added to the displayset: •All points - all points in the given source class(es). •Group - points of one group in the given source class(es). This requires that groups are assigned to the points. •Fence - points inside a fence in the given source class(es). |
