Search tie lines
Not Lite
Search tie lines action performs a tie lines search in TerraMatch. It requires a TerraMatch tie line search Settings file as parameter. The settings file can be created in the Search tie lines dialog of TerraMatch. The action performs the same process as the Search tie lines command of TerraMatch. The TerraMatch User Guide provides extensive information about TerraMatch functionality and data processing.
Running the macro action requires that TerraMatch is available on the same computer.

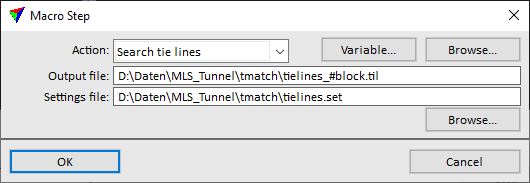

The macro action writes the tie lines into an output file. The storage location and name of the output file(s) are defined in the action settings. If the macro runs on a project with several blocks, the file name should include a variable, such as the block name.
SETTING |
EFFECT |
|---|---|
Output file |
Storage location and name of the output tie line file. Use the Browse button above the text field in order to open the Output file dialog, a standard Windows dialog for defining a file location and name. Use the Variable button in order to select a variable for the tie line file name. |
Settings file |
Location and name of the tie line search settings file. |
