Modify color

Scroll Prev Top Next More

Modify color

Not Lite

Modify color action adjusts the color values of points. The components to adjust are brightness, saturation and gray balance. The action requires that color values are stored for the points. It is normally used after extracting color values from images, for example with Extract color from images command for projects or Extract color from images command for loaded points.

The action performs the approximately same process as the Modify color command for loaded points.

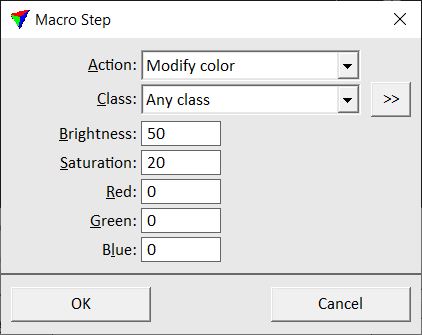

macro_modify_color

SETTING

EFFECT

Class

Point class(es) that are effected by the process.

_select_classes

Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the Class field.

Brightness

Value to add to the brightness of color values. Accepts values between -100 and 500.

Saturation

Value to add to the saturation of color values. Accepts values between -100 and 200.

Red

Value to add to the current red value of a point. Accepts values between -65535 and 65535.

Green

Value to add to the current green value of a point. Accepts values between -65535 and 65535.

Blue

Value to add to the current blue value of a point. Accepts values between -65535 and 65535.

Return value: Number of points that were effected by the process.
