Find wires

Not Lite

Find wires action performs about the same process as the Find Powerline Wires and Find Wires tools. However, instead of drawing lines for the wires immediately into the CAD file, the process writes the coordinates of vertices of each wire into text files.

The text files can be read into the CAD file by using the Read / Wires command in order to visualize the wires. The storage location and name of the output file(s) are defined in the action settings. If the macro runs on a project with several blocks, the file name should include a variable, such as the block name.

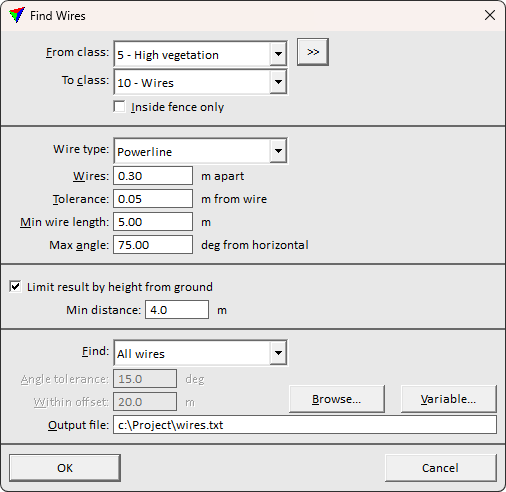

macro_find_wires

Return value: Number of points that are effected by the process and classified into the target class.
