Window reflections
Not Lite
Classify window reflections routine classifies points with pulse vector going through selected polygons. The polygons usually represent reflective wall surfaces, like windows or glossy metallic surfaces. Suitable polygons can be produced using tool vectorize wall polygons, for example.
This routine requires trajectories. The pulse vector is the line between point, and scanner positions.
The routine is useful for filtering error points caused by laser reflections.

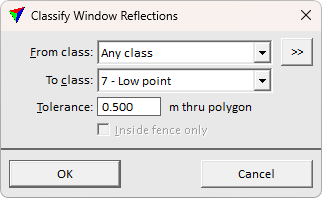

SETTING |
EFFECT |
|---|---|
From class |
Source class(es). |
|
Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field. |
To class |
Target class. |
Tolerance |
The minimum tolerance required to classify noise. If pulse vector is passes more than tolerance through a polygon surface, it is classified as noise. |
Inside fence only |
If on, points inside a fence or selected polygon(s) are classified. |
