Add xy point

Add xy point command lets you place a tie line of the type Xy point.

To add an xy point:

1. Select Add xy point command from the Line pulldown menu.

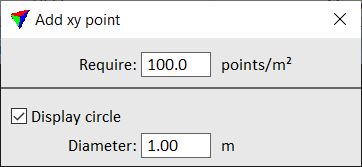

This opens the Add Xy Point dialog:

tl_add_xypoint

Setting

Effect

Require

Point density required for placing the tie point. Refers to points in the Wall classes field in the Tie Line Settings dialog.

Display circle

If on, a circle of the specified Diameter is displayed at the mouse pointer location. This helps to place a tie point accurately, for example on circular objects.

2. Define settings that fit to the laser data.

3. Select an approximate location for the tie point in the Full view.

This updates the Entry view and Detail view and adds the tie point to the list.

4. Place the tie point in the Entry view according the the laser data for each tie point position.

If you are not able to place all tie point positions, you can skip a position by selecting the next observation for this tie point. Then use the Clean command to remove undefined positions.
