Clear by class

Clear by class command clears the group number from points in selected classes. The group number is set to 0.

To clear group numbers:

1. Select Clear by class command from the Group pulldown menu.

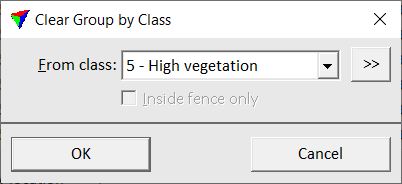

This opens the Clear Group by Class dialog:

clear_group_by_class

2. Define settings and click OK.

This sets the group number of points in the selected class(es) to 0.

SETTING

EFFECT

From class

Point class(es) included in the search for groups.

_select_classes

Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field.

Inside fence only

If on, only loaded points that are located inside a fence or selected polygon are effected. Requires a fence or selected polygon in the CAD file.

Group numbers can also be cleared when assigning new group numbers.
