Tools / Radius table
Sub-commands of the Radius table command can be used to apply radius values specified in a text file to circular arc components of the active geometry. The text file must contain only the radius values separated by space or line break.
To apply radius values from a text file:
1. Select Radius table / Read radius table... command from the Tools pulldown menu.
2. (Optional) Select circular arc components in the main window of the application.
3. Select Radius table / Apply radius table command from the Tools pulldown menu.

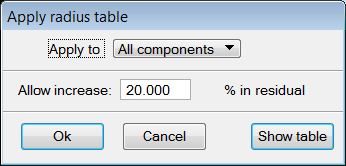

This opens the Apply radius table dialog:
4. Define settings and click OK.
This starts the process.
SETTING |
EFFECT |
|---|---|
Apply to |
Defines to which components the process is applied: All components or Selected components. |
Allow increase |
Determines the maximum allowed increase in residual values caused by applying radius values of arcs. |
Show table |
Opens a preview of the radius values read from the text file. |
