By distance

Scroll Prev Top Next More

By distance

Not Lite

By distance routine classifies points which are within a given distance range. The routine requires distance values that have been computed by using the Compute distance command or macro action.

If distance from ground values have been computed, the By distance routine results in the same classification as the By height from ground routine.

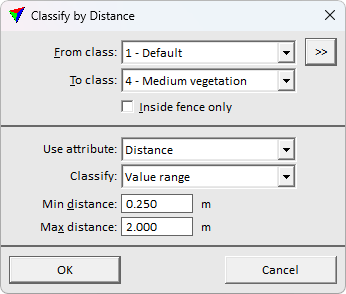

classify_by_distance

SETTING

EFFECT

From class

Source class(es).

_select_classes

Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field.

To class

Target class.

Inside fence only

If on, points inside a fence or selected polygon(s) are classified.

Min distance

Minimum distance value.

Max distance

Maximum distance value.
