By deviation
Not Lite
By deviation routine classifies points based on the Deviation attribute. The deviation is usually derived from the Riegl Extra Byte attribute Pulse shape deviation. A small deviation value indicates a normal shape return pulse. A big deviation value indicates an abnormal shape return pulse which may be caused by noise. Thus, the routine is useful for eliminating potential noisy points from more reliable points.

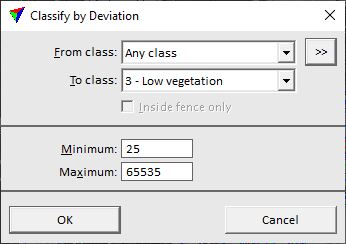

SETTING |
EFFECT |
|---|---|
From class |
Source class(es). |
|
Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field. |
To class |
Target class to classify points into. |
Inside fence only |
If on, points inside a fence or selected polygon(s) are classified. |
Minimum |
Smallest deviation value of a point to be classified. The minimum value is 0. |
Maximum |
Biggest deviation value of a point to be classified. The maximum value is 65535 |
