Copy surface
Copy surface command creates an identical copy of a surface model. The copy is created for the surface model in the RAM and for the surface model file stored on a hard disk. The new surface model file is saved at the same location where the original surface model is stored.
To create a copy of a surface model:
1. (Optional) Select a surface model from the list in the Surfaces window.
2. Select Copy surface command from the Utility pulldown menu.
This opens the Copy Surface dialog:
3. Select a Surface to copy from. If a surface was selected in step 1, this surface is selected in the dialog.
4. Click Copy.

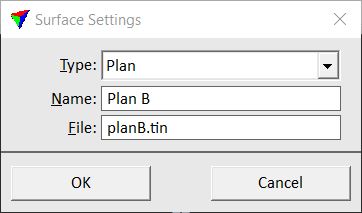

This opens the Surface Settings dialog:
5. Select a Type for the new surface.
6. Define a Name for the surface.
7. (Optional) Define a new File name for the surface model file stored on the hard disk.
8. Click OK.
This creates a copy of the surface model.
