Set Scale

g_set_scaleSet Scale tool sets the intended plotting scale of the design and rescales elements. Plotting scale affects the size of text elements that TerraModeler creates.

To set the intended plotting scale:

1. Select the Set Scale tool.

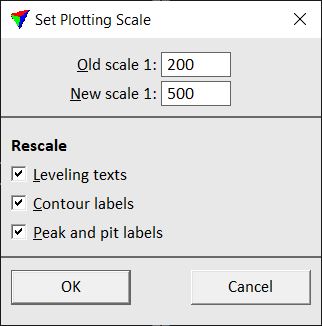

The Set Plotting Scale dialog opens:

setscale

2. Enter a value for the New scale.

3. Select elements to be rescaled.

4. Click OK.

The selected element types are rescaled.
