Set Area Domain
Not Lite, Not UAV
Set Area Domain tool defines a domain for all triangles inside or outside a fence. The tool uses the center point of a triangle to decide if a triangle is inside or outside the fence.
The area can be defined by a fence or selected shape element(s).
To set domain of fence contents:
1. Place a fence or select shape element(s) that define the area.
2. Select the Set Area Domain tool.

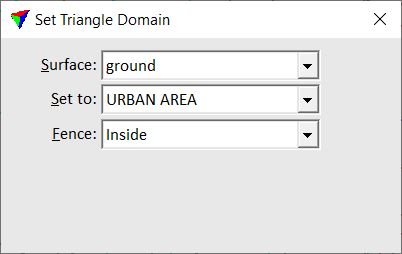

This opens the Set Area Domain dialog:
3. Define settings.
4. Accept the fence contents with a data click.
The selected domain is assigned to the triangles inside or outside the fence.
Setting |
Effect |
---|---|
Surface |
Name of the effected surface model. |
Set to |
Domain that is assigned to the triangles. |
Fence |
Fence mode: Inside or Outside. |
