Set Contour Elevation

2dc_set_contour_elevationSet Contour Elevation tool lifts a linear element to a given elevation. It is designed to be used for lifting single two-dimensional contour elements to a correct elevation. It can be applied to line, shape and text elements. The original elements are moved to their new elevation.

To set elevation of contour element(s):

1. Select the Set Contour Elevation tool.

The Set Contour Elevation dialog opens:

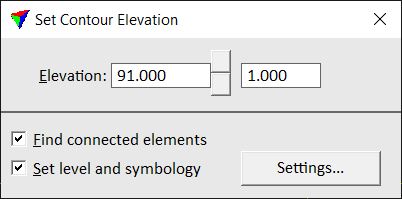

2d_set_contour_elevation

2. Set an elevation value in the Elevation field.

3. Click Settings to define level and symbology for the lifted contour.

This opens the Contour Symbology dialog:

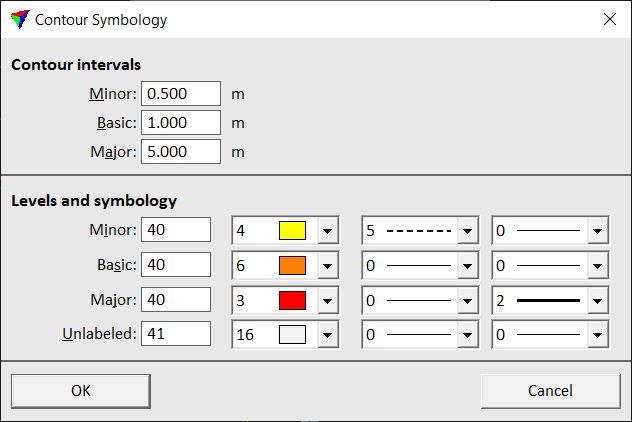

2d_contour_symbology

4. Define settings for Contour intervals, Levels and symbology (color, line style, line weight).

5. Click OK to close Contour Symbology dialog.

6. Identify the element to lift with a data click.

7. Accept the element with another data click.

The element is lifted to the given elevation. You can continue with steps 2, 3, or 6.

Setting

Effect

Elevation

Elevation value for the lifted contour element. Use the arrow buttons to change to a new elevation value in steps defined next to the arrow buttons.

Find connected elements

If on, the application tries to find linear elements which connect exactly to the start or the end point of the identified line element. These connected elements are lifted as well.

Set level and symbology

If on, modify the symbology of lifted elements according to settings defined using Settings button.
