Convert angles
Convert angles command lets you apply a mathematical equation to the attitude angles heading, pitch, and roll of each trajectory position. The current angle value can be accessed by using constants H (heading), R (roll) and P (pitch). Thus, the command can also be used to exchange angle values.
To convert angles of trajectory positions:
1. (Optional) Select trajectory file(s) for which to manipulate angles.
2. Select Convert angles command from the Tools pulldown menu.

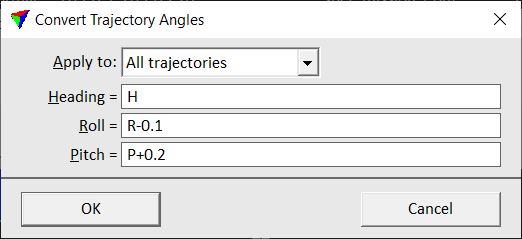

This opens the Convert Trajectory Angles dialog:
3. Define equations and click OK.
This computes the new values for the orientation angles. The modification is saved to the trajectory binary files in the active trajectory directory. An information dialog shows the number of effected trajectories.
SETTING |
EFFECT |
|---|---|
Apply to |
Trajectories for which the computation of new angles is applied: •All trajectories - all trajectories in the list. •Selected only - selected trajectories only. |
Heading |
Equation for modifying the heading angle. |
Roll |
Equation for modifying the roll angle. |
Pitch |
Equation for modifying the pitch angle. |
