By distance

Not Lite

By distance routine classifies groups of points which are within a given distance range.

The routine requires that points have been assigned to groups using the Assign groups command or corresponding macro action.

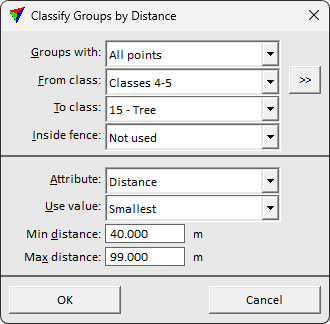

classify_groups_by_distance

SETTING

EFFECT

Groups with

Determines which groups are classified:

One or more points - groups with one or more points in the source class.

Majority of points - groups with the majority of points in the source class.

All points - groups with all points in the source class.

From class

Source class from which to classify points.

_select_classes

Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field.

To class

Target class to classify points into.

Inside fence

Determines how a fence or selected polygon(s) effect the classification:

Not used - fence or selected polygons are ignored.

One or more points - groups are classified if one or more points are inside.

Average xy - groups are classified if the average xy point is inside.

Majority of points - groups are classified if the majority of points is inside.

All points - groups are classified if all points are inside.

Use value

Value that determines the distance of a group:

Biggest - groups is classified if the biggest distance value is within the given distance range.

Median - groups is classified if the median distance value is within the given distance range.

Average - groups is classified if the average distance value is within the given distance range.

Smallest - groups is classified if the smallest distance value is within the given distance range.

Min distance

Minimum distance value.

Max distance

Maximum distance value.
