Add Points To Group
Add Points To Group tool adds points to an existing group. Points to be added are determined by a fence and optionally also specified by class.
To add points to a group:
1. Select Add Points To Group tool.

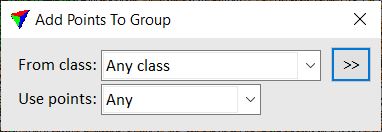

This opens the Add Points To Group dialog:
2. Define settings.
3. Select the target group with a data click inside or close to the group.
4. Draw a fence around the points to add to the group by placing data clicks inside a few. The last data click must close the fence.
5. Confirm the fence contents with another data click inside the few.
This adds the points inside the fence to the target group.
SETTING |
EFFECT |
|---|---|
From class |
Point class(es) added to the target group. |
|
Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field. |
Use points |
Determines which points are added to the target group: •Any - all points inside the fence. •One group - points of the one group from which the highest amount of the points is inside the fence. •Non-grouped - points without a group assignment. |
In Bentley CAD, a fence can be drawn before the tool is started using the Place fence tool. Then, the fence element defines the fence area for the tool.
