Delete / Closeby images

Delete / Closeby images command removes images from the image list that are captured within a defined time interval, distance, or turn angle. This can be used, for example, to delete multiple images that see almost the same location, such as images captured by a mobile ground-based camera system during a stop, slow drive, or sharp turn.

To delete closeby images:

1. Select Delete / Closeby images command from the Images pulldown menu.

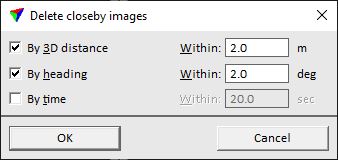

This opens the Delete closeby images dialog:

delete_closeby_images

2. Define settings and click OK.

The software detects closeby images and removes them from the image list. An information dialog displays the number of deleted images.

3. Select Save list or Save list As commands from the Images pulldown menu in order to save the changes into an image list file.

SETTING

EFFECT

By 3D distance

Images captured within the given distance from each other are deleted.

By heading

Images for which the change in heading angle is within the given value are deleted.

By time

Images captured within the given time interval are deleted.
