Import Pix4d project

Scroll Prev Top Next More

Import Pix4d project

Not UAV

Import Pix4d project command reads information from Pix4d camera calibration files and creates a mission, an image list and a TerraPhoto camera file.

To import a Pix4d project file:

1. Select Import Pix4d project command from the Mission pulldown menu.

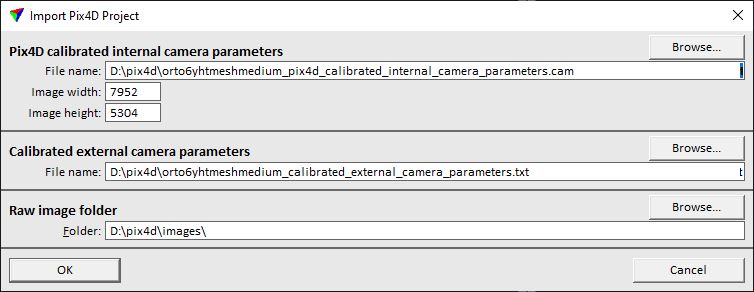

The Import Pix4d Project dialog opens:

import_pix4d_project

3. Define settings and click OK.

This opens the Mission dialog. Enter additional settings for the mission and camera definition as described for creating a new mission.

When the Mission dialog is closed, an information dialog informs about the successful import. Save the mission and image list. The camera file is saved automatically in the folder defined in the Mission camera dialog.

SETTING

EFFECT

File name

Location and name of the text file that stores internal camera parameters provided by Pix4d software. The parameters are converted into TerraPhoto camera parameters.

Image width

Width of a raw image in pixels.

Image height

Height of a raw image in pixels.

File name

Location and name of the text file that stores the exterior orientation parameters provided by Pix4d software. This file is converted into a TerraPhoto image list.

Folder

Directory that stores the raw images.
