Lattice database / Draw contours

Not Lite, Not UAV

Draw contours command draws contour lines, labels, and ticks for lattice database files.

To draw contours for lattice database files:

1. Select Draw contours command from the Utility / Lattice database pulldown menu.

This opens the Draw Grid Contours dialog, a standard dialog for opening files.

2. Select the lattice file(s) for drawing contours.

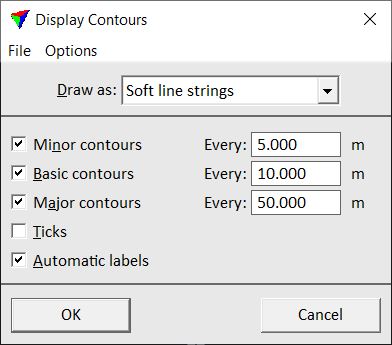

The Display Contours dialog opens:

latticeDB_display_contours

The dialog is a reduced version of the Display Contours dialog described for the Display Contours tool. It provides the same options for drawing contour lines, labels and ticks, and for saving and loading contour settings files.

3. Define settings and click OK.

This draws the contours into the CAD file.
