Draw observations
Draw observations command draws tie line observations into the CAD file. The observations are drawn as point or line elements using the active level and symbology settings of the CAD file.
To draw tie line observations:
1. Select Draw observations command from the Tools pulldown menu.

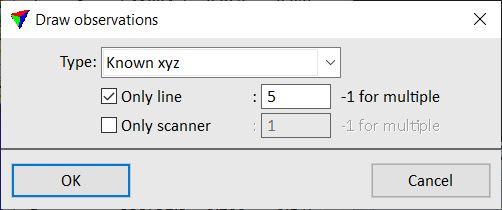

This opens the Draw observations dialog:
2. Define settings and click OK.
This draws the tie line observations into the CAD file.
Setting |
Effect |
|---|---|
Type |
Tie line type to be drawn: Any or one of the tie line types available in TerraMatch. |
Only line |
If on, only tie lines of the given flight line number are drawn. |
Only scanner |
If on, only tie lines of the given scanner number are drawn. |
