Draw polygons
Not Lite
Draw polygons action performs about the same process as the Draw Polygons command. However, instead of drawing polygons immediately into the CAD file, the process writes the coordinates of the polygon vertices into text files.

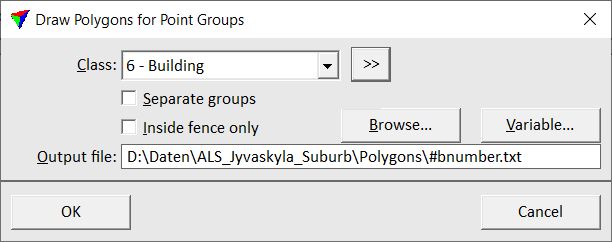

The text files can be read into the CAD file by using the Read / Polygons command in order to draw the polygons. The storage location and name of the output file(s) are defined in the action settings. If the macro runs on a project with several blocks, the file name should include a variable, such as the block name or number.
Return value: Number of polygons written in the text file, -1 if the process failed, or -2 if the output files could not be written.
