Export lattice
Not Lite

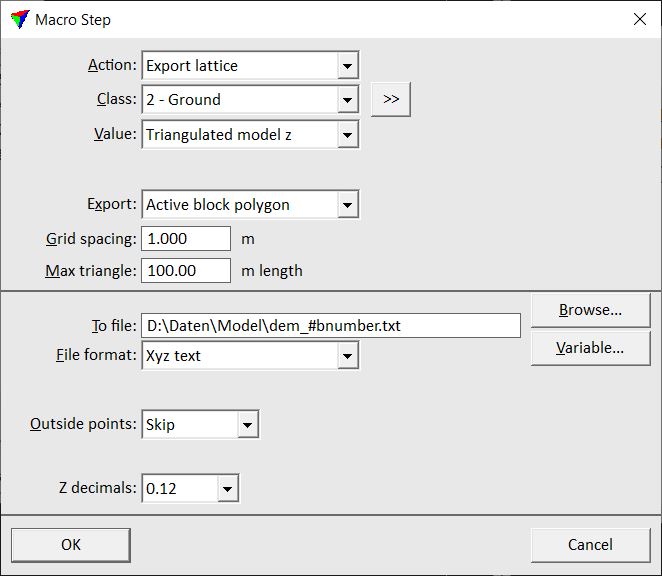

Export lattice action performs about the same process as the Export lattice model command for loaded points. The major differences are:
•There are no selected shapes required that define the area for each lattice model. The area is defined by the extend of loaded data.
•
•The storage location and name of the output file(s) are defined in the macro action settings. If the macro runs on a project with several blocks, the file name should include a variable, such as the block name.
•Text elements drawn in the CAD file can not be used in the macro action.
Return value: 1 if the process was successful, 0 if the process failed due to the lack of points in the source class, or -2 if the output files could not be written into the given directory.
