Profiles / Layouts category
Layouts category in Profiles folder displays a list of user defined profile layouts. Each layout definition contains a list of data rows that appear below the profile.
You can edit existing layouts by using the Edit button in the Settings dialog. This opens the Profile layout dialog which shows data rows defined for this layout. The dialog lets you add, edit, or delete existing data rows for a profile layout.
You can delete existing layouts by using the Delete button in the Settings dialog. The Copy button creates an identical copy of a selected layout definition.
To define a new profile layout:
1. Open the Layouts category in the Profiles folder.
2. Click Add in the Settings dialog.

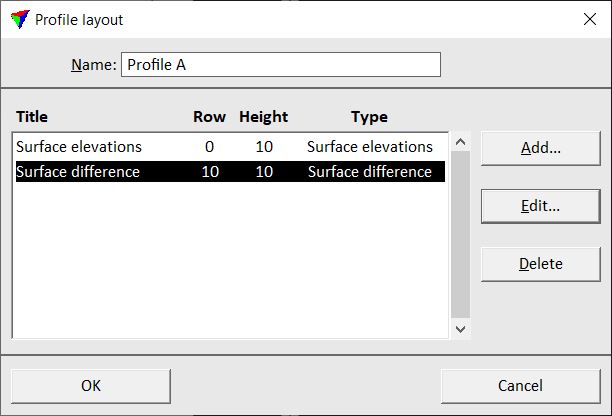

The Profile layout dialog opens:
3. Type a Name for the profile layout.
4. Click Add in the Profiles layout dialog in order to add a new data row that is displayed below a profile.

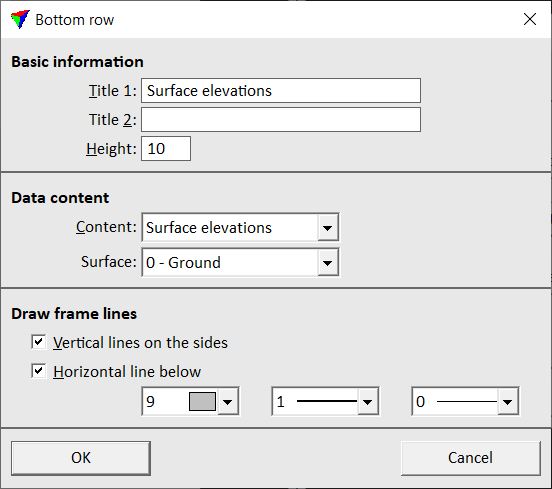

The Bottom row dialog opens:
5. Define basic information settings.
6. Select an auto-text option for the Content list as well as additional settings depending on the content selection. Choose Other as Content if nothing of the list entries fit to your data.
7. Select settings for frame lines.
8. Click OK in the Bottom row dialog.
9. Add more data rows if necessary.
10. Click OK to the Profile layout dialog.
11. Close the Settings dialog in order to save the modified settings for TerraModeler.
Setting |
Effect |
|---|---|
Title 1 |
Free text used as first line of a title in the bottom row. |
Title 2 |
Free text used as second line of a title in the bottom row. |
Height |
Height of the bottom row. Given in millimeters on paper. |
Content |
Defines the type of information displayed in the bottom row: •Surface elevations - elevations of surfaces of the given Surface type. •Surface difference - Difference between surfaces of the two given surface types. •Pipe - space reservation for information of a given Pipe type. The content is filled by TerraPipe. •Pipe stations - space reservation for pipe stationing of a given Pipe type. The content is filled by TerraPipe. •Stationing - stations along the alignment element of the profile. •Other - space reservation for any other content that can be added manually. |
Vertical lines on the sides |
If on, vertical lines are drawn on the left and right side of the bottom row. |
Horizontal line below |
If on, a horizontal line is drawn below the bottom row using the given symbology. |
The symbology of the bottom row titles below a profile can be set in Profiles / Titles category.
